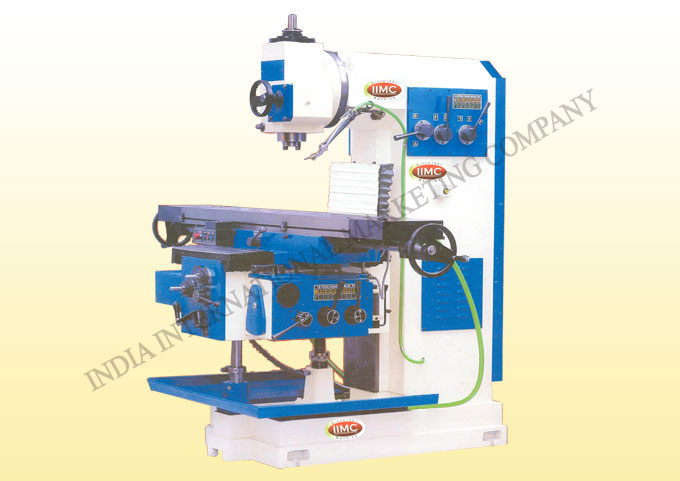

All Geared Milling Machines : VERTICAL












Salient Features

All Geared Universal and Vertical Milling Machines with 12 speeds head. 18 feeds in X.Y.Z. Movement, one repaid travers, complete Electricals, Motrors I.S.I Make, Including Electrical Control, panel, Coolant pump, Bellows, Lubrication Systems with manual Pump, Tapper Jibs, Wipers Stips, Vertical and cross feeds single Lever drive.



Highlight

In Fabrication of IIMC Milling Machines we used High Quality Close grained cast lron. All slides Grinded on Slideway Grinder and Closely scraped. All Gears made of Ncihel – Chroms Steel and hardened. Steel Sliding gears carried on splined shafts, shafts Spindle and Arbor made of alloy steel hardened and ground. All the shafts and screw made out of alloy steel. Maximum simplicity of mechanical design ease of control.



Specifications All Geared Vertical Milling Machines

  Model AGM 2V AGM 3V AGM 4V AGM 5V
  TABLE
  Working Surface 1300 x 300 1400 x 330 1600 x 350 1800 x 400
  No. And width of T Nut 3.16 3.22 T NUT 3.22 TNUT 3.22 TNUT
  centre distance between T slots 70 80 85 90
  Longitudinal traverse by power X 700 800 1000 1200
  Cross traverse by power V 215 260 340 380
  Vertical traverse by power Z 450 510 600 650
  Mm. Distance from left hand table end to spindle center 250 300 350 400
  Max. Safe weight on table 300 400 600 800
  MILLING SPINDLE
  No, Of Speeds 12 12 12 12
  Speeds Range 40- 1200 40- 1200 40- 1200 40- 1200
  Spindle nose IS0 - 40 IS0 - 40 IS0 - 40 IS0 - 50
  Min./ Max. Distance, centre milling spindle / lower face of milling spindle to table top surface 40-450 60 - 510 60 - 600 60 - 650
  Distance spindle centre to column 320 350 370 400
  Face vertical movement of quill 75 95 95 100
  Swivel of milling head on either side 45° 45° 45° 45°
  FEEDS
  No. of Feeds 18 18 18 18
  Feed range Long & Cross 23-420 23-420 23-420 23-420
  Vertical 3-70 3-70 3-70 3-70
  Rapid Traverse: Long & Cross 1050 1050 1050 1050
  Vertical 175 175 175 175
  POWER
  Main Motor 3 H.P. 5 H.P. 7.5 H.P. 10 H.P.
  Feed Motor 2 H.P. 2 H.P. 3 H.P. 3 H.P.
  Coolant Motor 0.1 H.P. 0.1 H.P. 0.1 H.P. 0.1 H.P.
  SHIPPING DIMENSIONS
  Length x Width x Height 188 x 157 x 208 213 x 175 x 234 246 x 188 x 246 260 x 200 x 260
  Net Weight 2200 3200 3700 4500
  Gross Weight 2600 3700 4300 5000



Standard Accessories

Main Drive Electric Motor, Feed Gear Box Electric Motor, Coolant System, Vee Belts, Control Panel, Steel Belows, First Fill Of Oils And Lubricants



Optional Accessories

Vertical Head, Parking Bracket, Slotting Attachment, Rack Cutting Attachment, Dividing Head, Rotary Table, Milling Machine Vice, Machine Lamp, DRO, Boring Head, Collet, Adapters.
